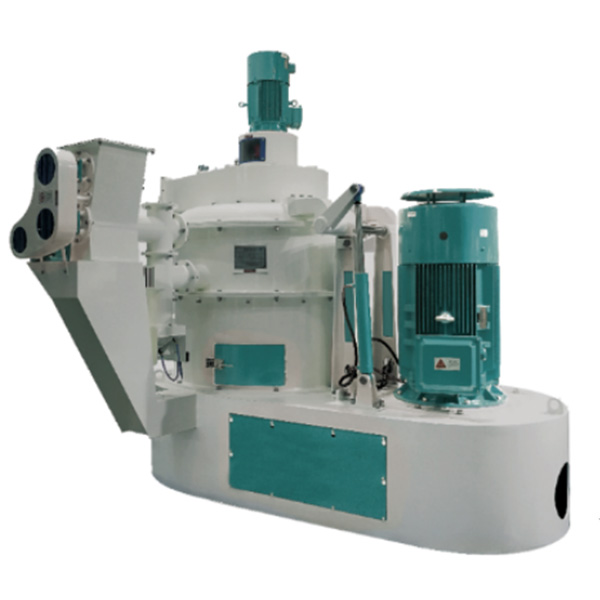

This machine is composed of three parts:main engine,auxiliary machine and electronic control box.It has many functions,such as air selection,no screen,no net,uniform particle size and so on.The production process is carried out continuously.The machine has low temperature,high crushing ability and low vulnerability in crushing operation.Its comprehensive performance has reached the international advanced level.The machine is widely used in material crushing in pharmaceutical,chemical,food,feed and other industries.
| Model | 110-110 | 110-132 | 130-132 | 130-160 | 150-160 | 150-200 | 170-220 |
| Disk diameter（mm) | 1100 | 1100 | 1300 | 1300 | 1500 | 1500 | 1700 |
|
yield（kg\h) 95%60-300目 |
10000- 1050 |
12000- 1200 |
14000- 1800 |
16000- 2100 |
18000- 2600 |
20000- 3000 |
25000- 3600 |
| Main motor(kw) | 110 | 132 | 132 | 160 | 160 | 200 | 220 |
| Fan motor(kw) | 45 | 45 | 55 | 55 | 55 | 55 | 75 |
| Extension motor(kw) | 11 | 11 | 11 | 11 | 18.5 | 18.5 | 18.5 |
| Feeding motor(kw) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Offwind motor(kw) | 1.5-0.75 | 1.5-0.75 | 1.5+0.75 | 1.5+0.75 | 1.5+0.75 | 1.5+0.75 | 1.5+0.75 |
|
Size L*W*H（mm) |
95000× 3000×4500 |
95000× 3000×4500 |
110000× 3100×4500 |
110000× 3100×4500 |
125000× 3300×4500 |
125000× 3300×4500 |
140000× 4200×5300 |
